Description

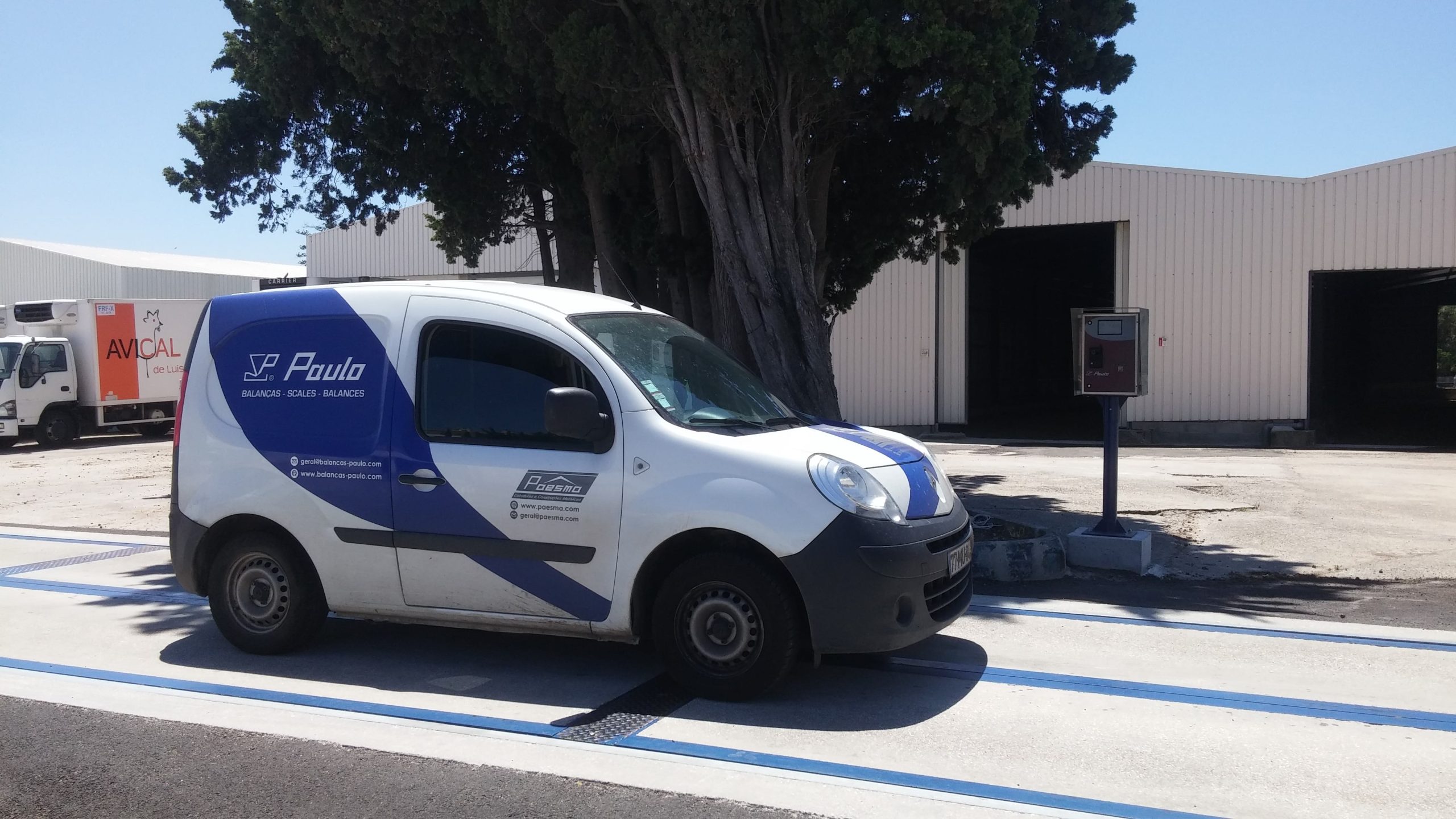

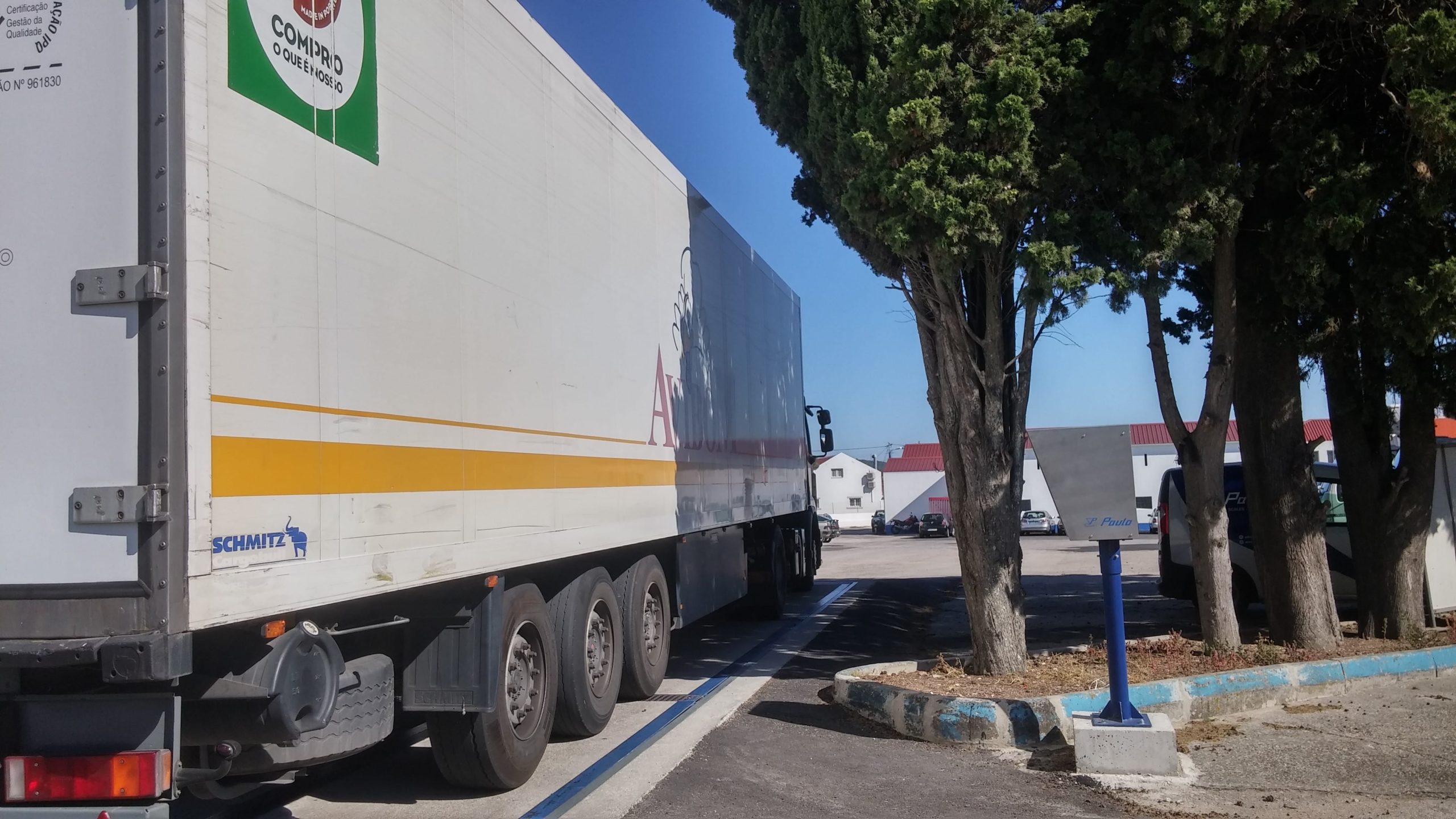

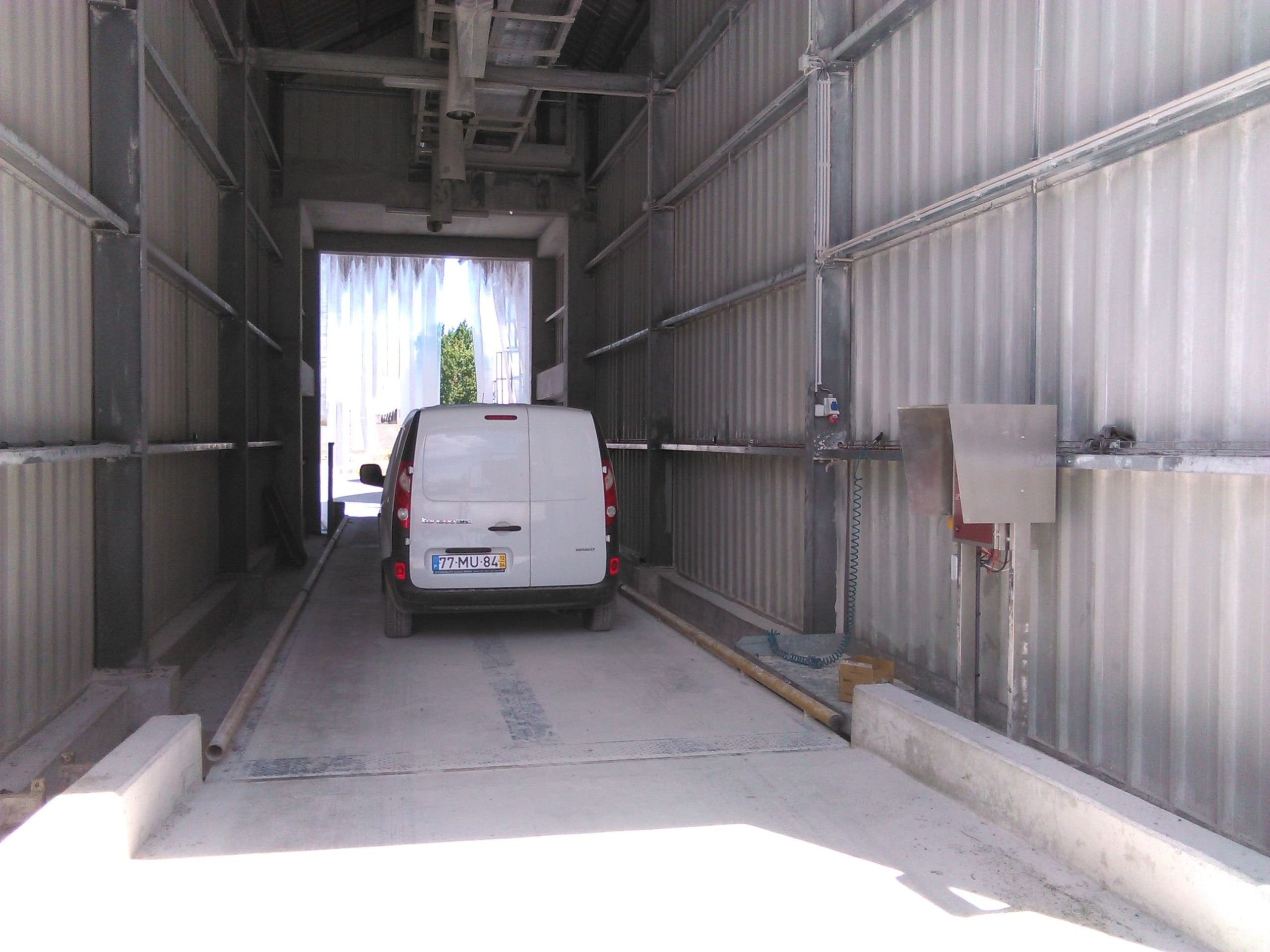

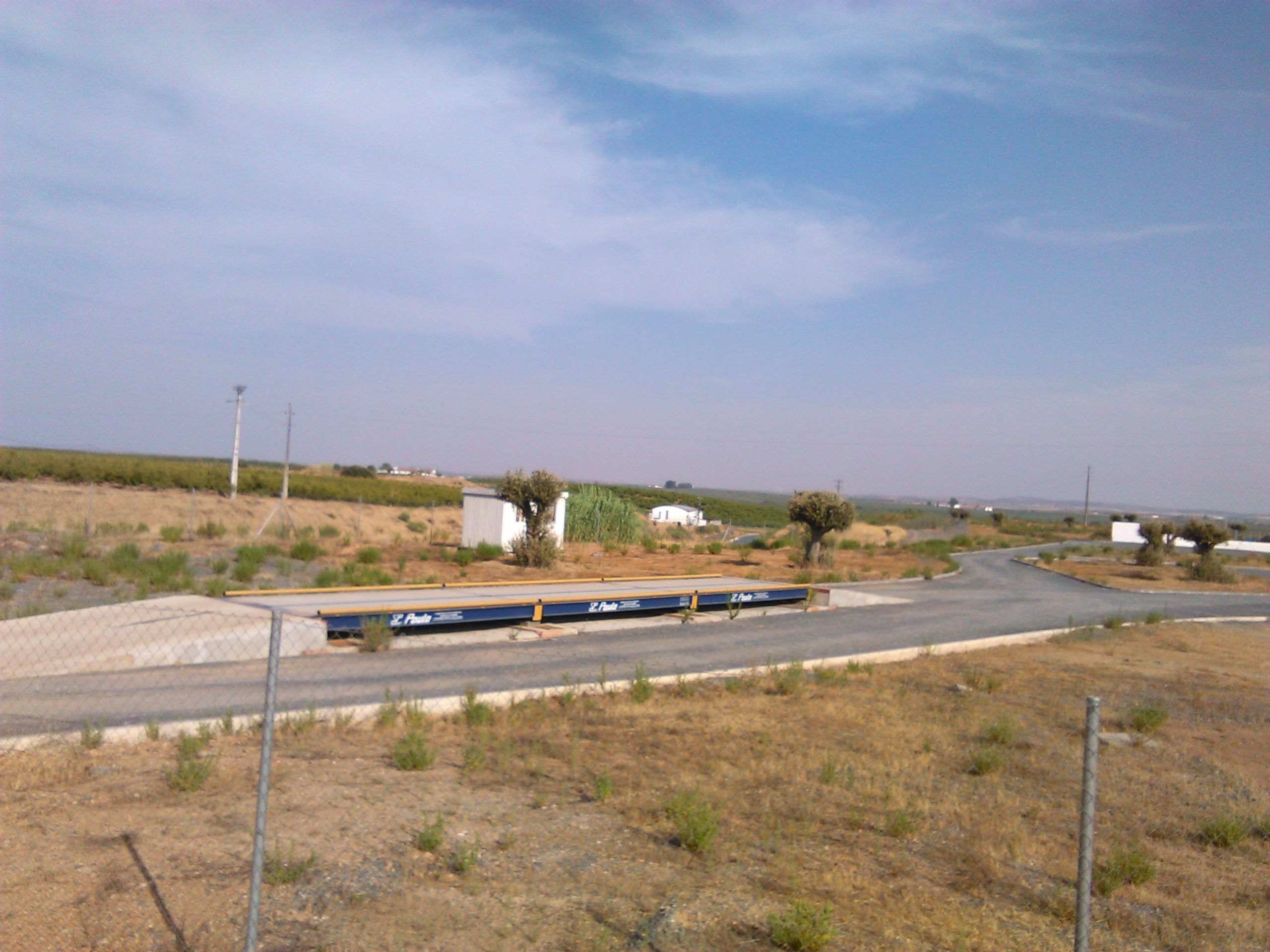

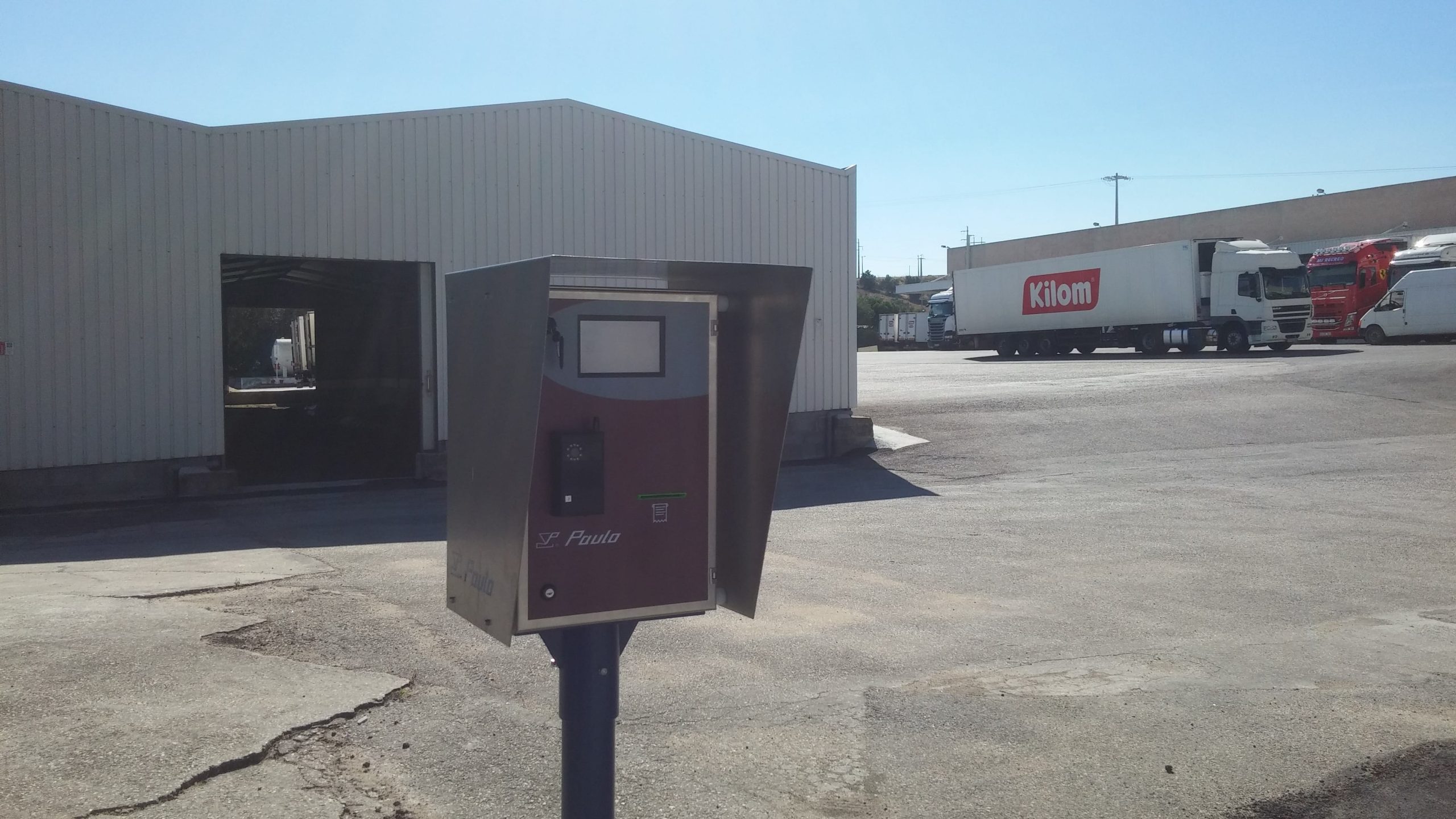

The self-service terminal allows the recording of advanced weighing operations on a weight bridge by the vehicle’s driver, without an operator’s intervention.

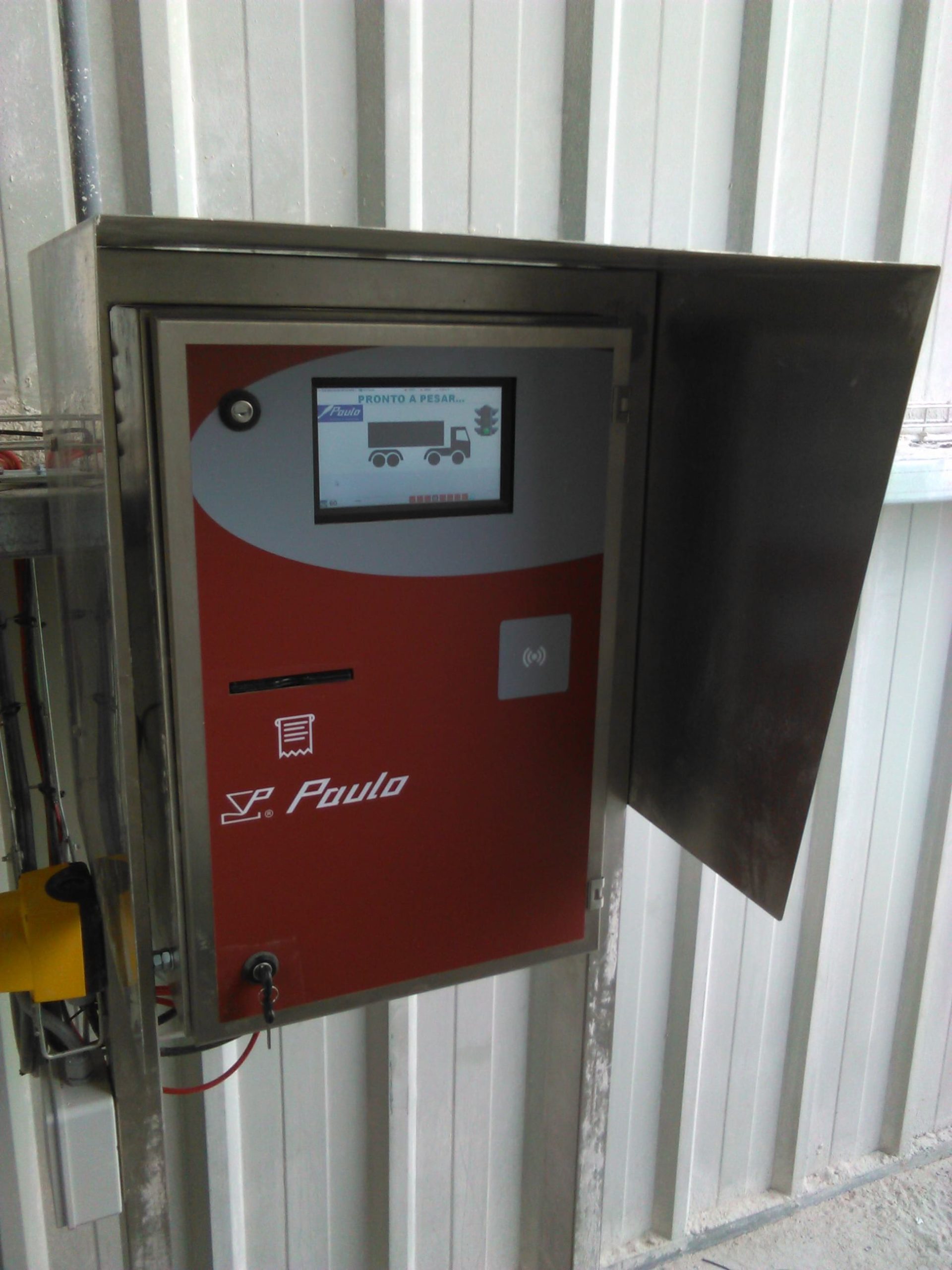

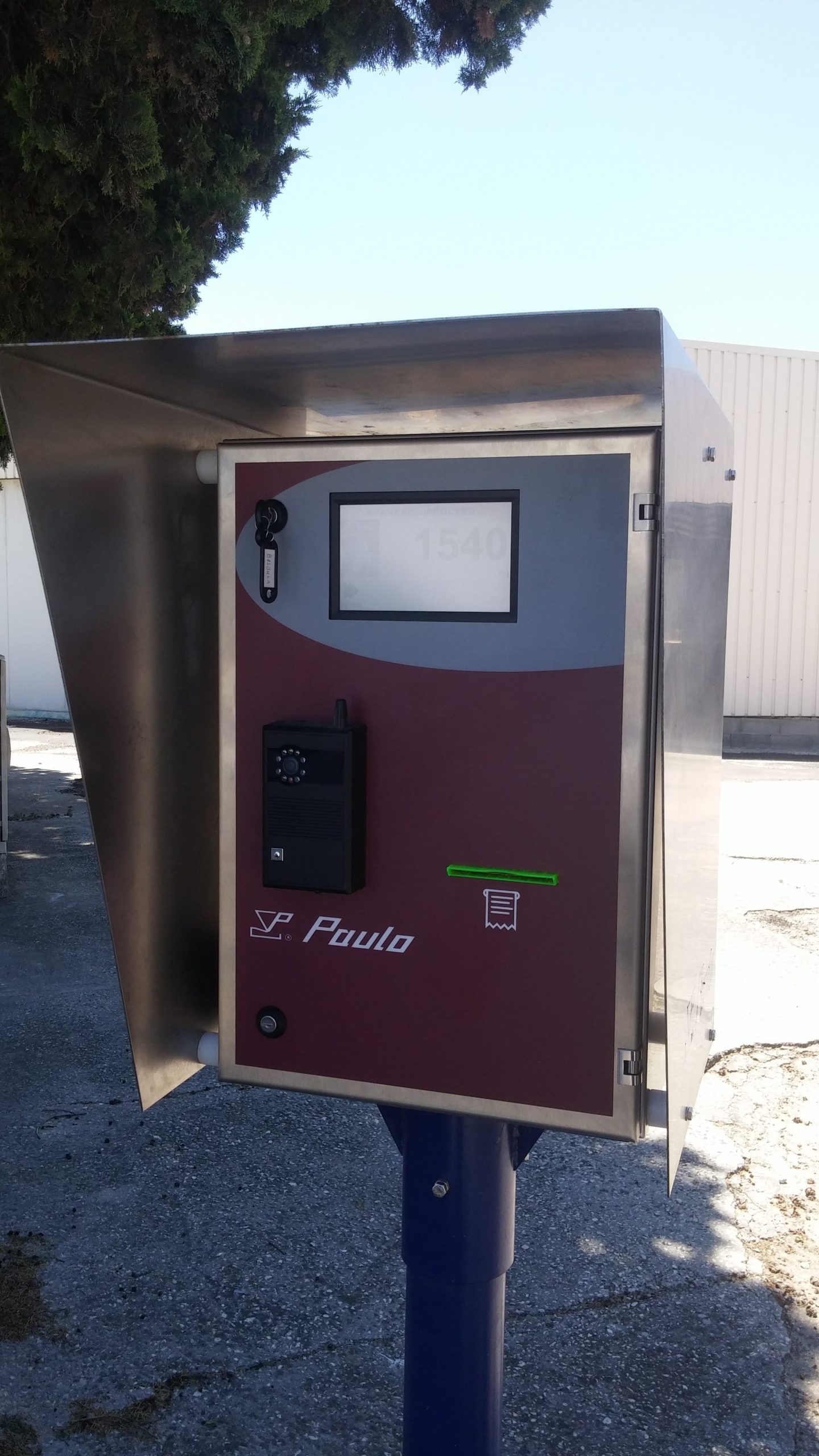

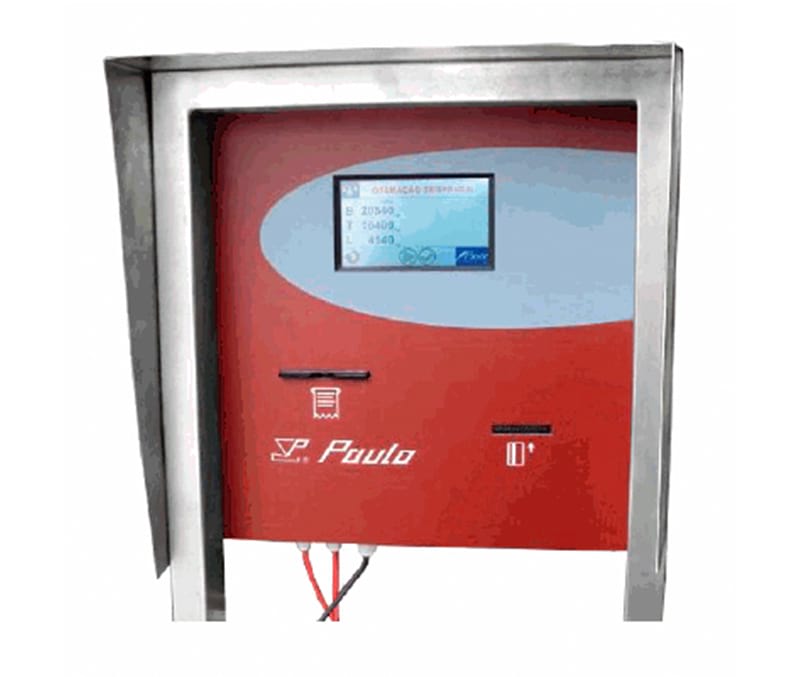

Advanced Self-Service Terminal TAS
Registration of Weighings Without Operator | Touch Screen | Thermal Printer | Card Reader | Barcode Scanner (Optional) | Intercom (Optional) | Currency Selector (Optional) | Network or Standalone Operation | Stainless | Back Office Software | Kiosk, Tower or Wall Mount
Functions
Full integration with the Weighbridge: weight obtained automatically, without the intervention of an operator
- The vehicle drivers carry out the weighing without the intervention of an operator exclusively for the Weighbridge;
- The touchscreen indicates the status of the operation and allows confirmation of the data associated with the weighing operation;
- Automatic filling of the weighing data by reading a previously programmed RFID card;
- Printing of the weighing receipt in the first/second weighing;
- “Back office” software for configuring the terminal and programming the cards and their data;
- Customization of the operating principle according to the activity;

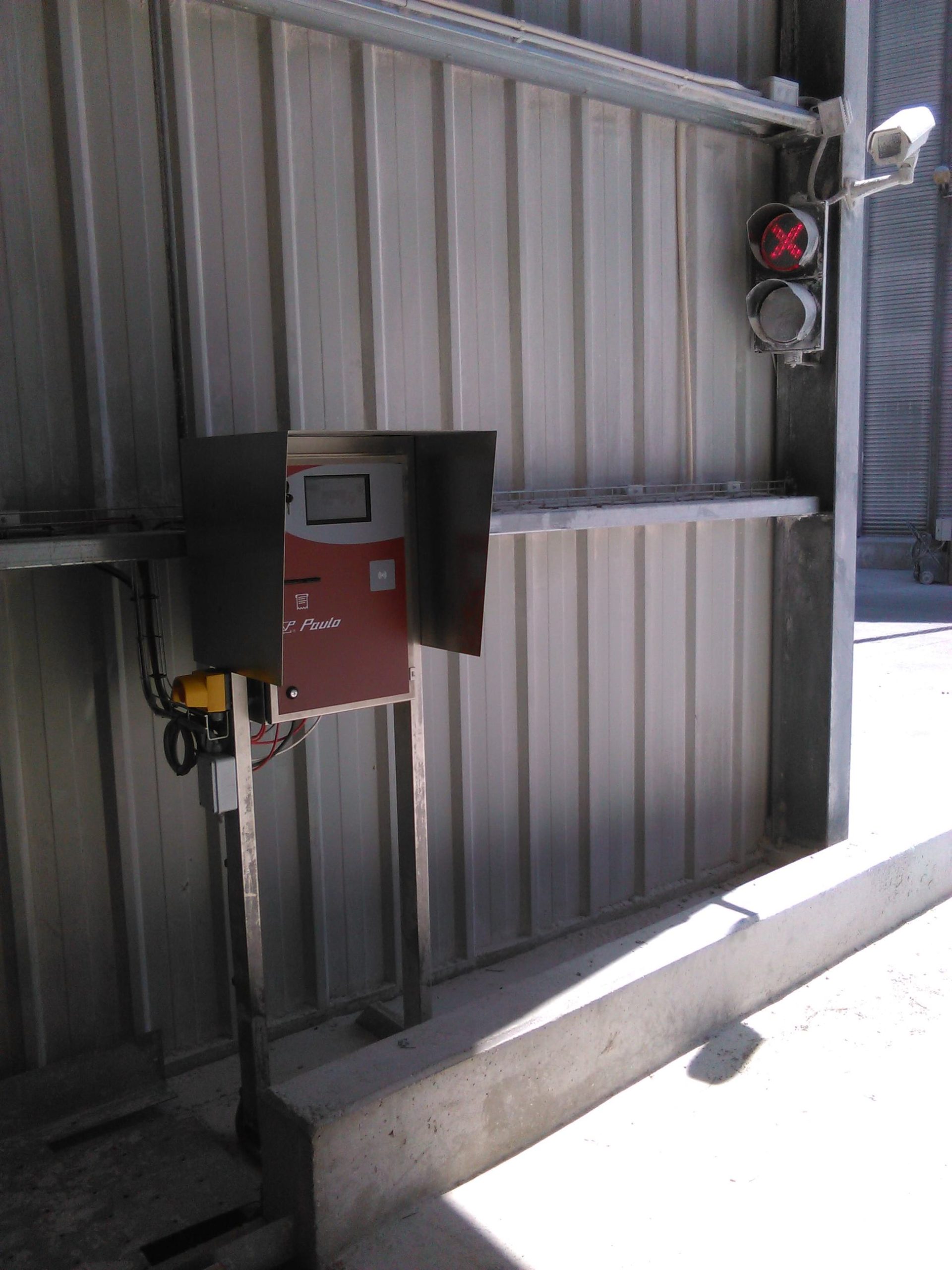

- Integration with Peripherals: Barriers, Traffic Lights, Position Sensors, Automation, etc.;
- Integration with ERP management software;
- Remote support for assistance.
Specifications
- Panel PC: 10″ touchscreen; Front IP65; 1xSSD; 1xLAN; 4xRS232;
- Printer: Direct Thermal; <-> 80mm; ø80mm;
- Card Reader: RFID Mifare 13.56 MHz prox./collection;
- Barcode reader: KBR2D;
- Power supply: 230VAC / 50Hz;
- Protection: IP55;
- Operating temperature: 0 °C / +40 °C.
