Manual Tightening Bagging Machine ENSAC200

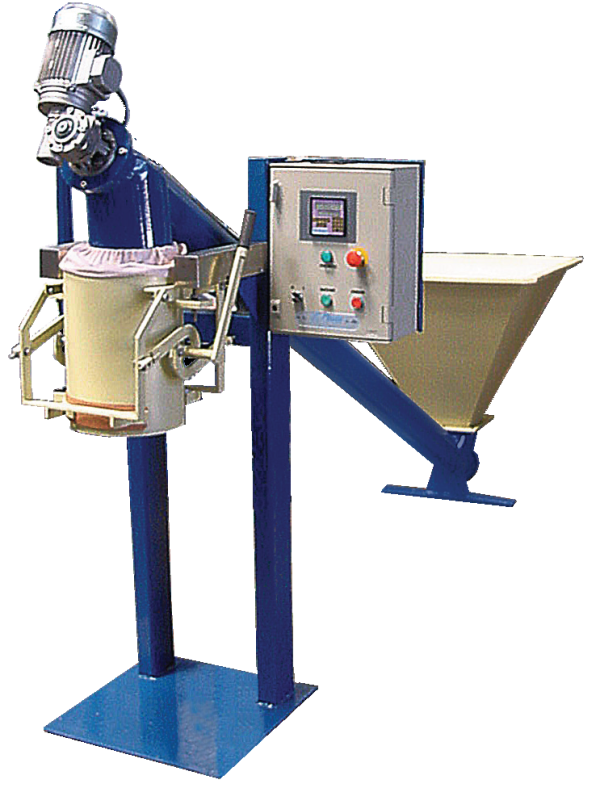

Ensacadora de Aperto Manual / Manual Tightening Bagging Machine

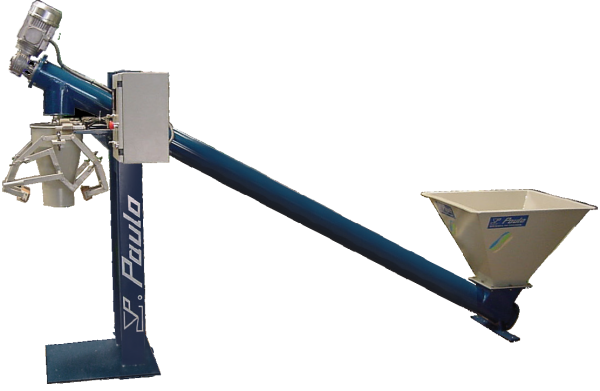

Ensacadora de Aperto Manual / Manual Tightening Bagging Machine Lateral

Manual Tightening Bagging Machine ENSAC200

Bagger with manual grip and weighing in the bag.

Request for Information

Description

Manual Tightening Bagging Machine ENSAC200

Max weight per bag: 60 kg – Maximum volume of the feeding hopper: 160 L – Production capacity: Up to 200 bags / hour, according to product characteristics – Weighing accuracy: 5g / 10g – Bagging accuracy: maximum error 1% – Dimensions (L x H x D): 81x190x330 cm – Weight: 130 kg

Suitable for weighing and bagging cereals or other granulates | Bottom hopper for easy equipment feeding | Manual Bag Grip | Dosing by motor-operated endless conveyor with speed variator.

Functions

  • Additive bagging;
  • Complete dispensing cycle programming;
  • Automatic operation up to 999 cycles;
  • Large and small flow;
  • Automatic correction;
  • Up to 10 product configurations.

Specifications

  • Max weight per bag: 60 kg;
  • Maximum volume of the feeding hopper: 160 L;
  • Production capacity: Up to 200 bags / hour, according to product characteristics;
  • Weighing accuracy: 5g / 10g;
  • Bagging accuracy: maximum error 1%;
  • Dimensions (L x H x D): 81x190x330 cm;
  • Weight: 130 k.

Controller

  • Weight display: LED 6×14 mm;
  • Data display: 8×9 mm LED;
  • Indicators: zero, tare, stability, operation and status of inputs/outputs;
  • Keyboard: 20 function/alphanumeric keys;
  • 4 digital inputs;
  • 4 digital outputs;
  • 1xRS232; 1xRS485:
  • Protection: IP54;
  • Power: 230VAC / 50Hz (24VDC optional);
  • Operating Temperature: 0ºC +40ºC;
  • Precision Class III (OIML).

Load Cells

  • 1x load cells 100 kg;
  • IP65 protection;
  • CE / OIML R60 approval.

Options

Mouth for 25 kg bag | Transport wheels | Support desk

Data sheets

Download
