Pneumatic opening bagging machine ENSAC350

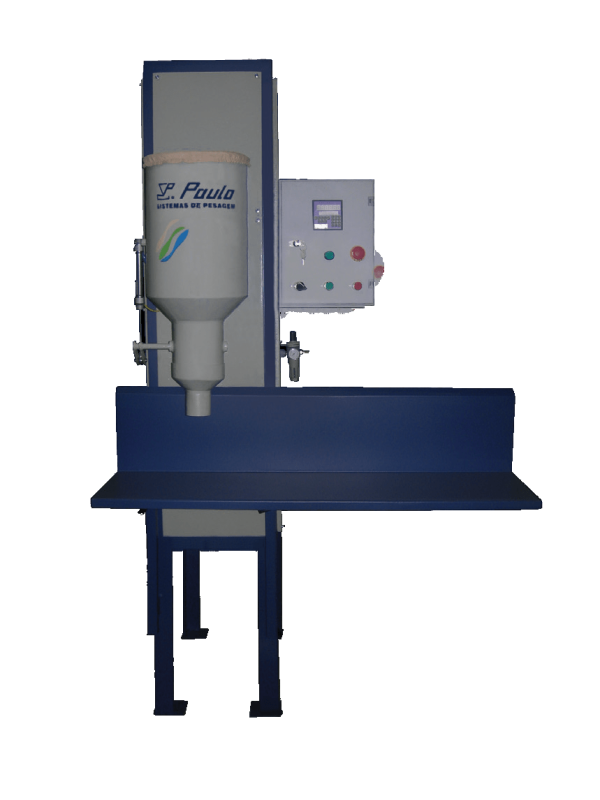

Ensacadora de Abertura pneumática ENSAC350 / Pneumatic opening bagging machine

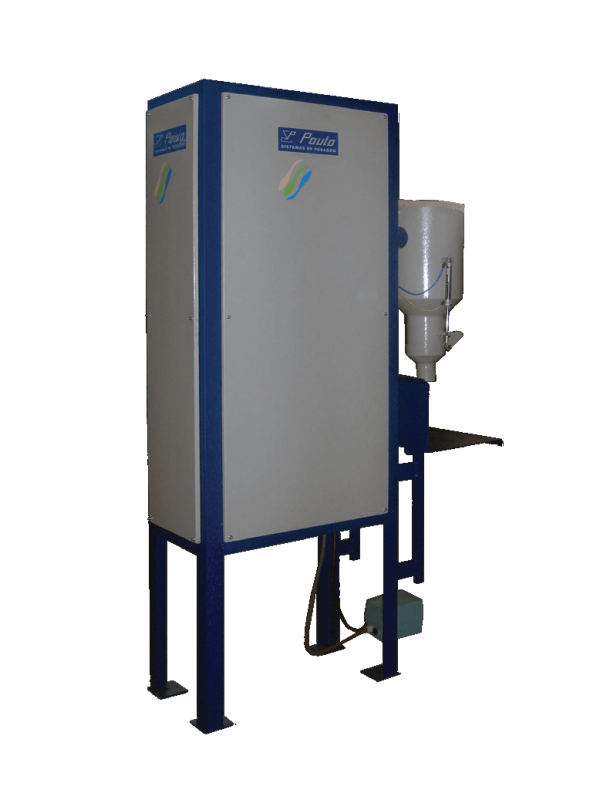

Ensacadora de Abertura pneumática ENSAC350 / Pneumatic opening bagging machine ENSAC350
Ensacadora de Abertura pneumática ENSAC350 lateral / Pneumatic opening bagging machine ENSAC350

Pneumatic opening bagging machine ENSAC350

Bagging machine with weighing hoody and pneumatic opening.

Request for Information

Description

Pneumatic Opening Bagging Machine

1x load cells 30 kg – IP65 protection -CE Approval / OIML R60

Suitable for weighing and bagging seeds and cereals up to 5 kg | Compact equipment to allow easy integration into the existing production structure | Dosing by motor-operated worm conveyor with variable speed drive | Dispensing cycle independent of the bagging operation | Pneumatic foot-operated opening.

Functions

  • Additive bagging;
  • Complete dispensing cycle programming;
  • Automatic operation up to 999 cycles;
  • Large and small flow;
  • Automatic correction;
  • Up to 10 product configurations.

Specifications

  • Max weight per bag: 5 kg;
  • Maximum volume of the weighing hopper: 10 L;
  • Maximum volume of the feeding hopper: 50 L;
  • Production capacity: Up to 300 bags / hour, according to product characteristics;
  • Weighing accuracy: 1 g / 2 g;
  • Bagging accuracy: maximum error 1%;
  • Dimensions (L x H x D): 78xx243x100 cm;
  • Weight: 250 kg.

Controller

  • Weight display: LED 6×14 mm;
  • Data display: 8×9 mm LED;
  • Indicators: zero, tare, stability, operation and status of inputs/outputs;
  • Keyboard: 20 function/alphanumeric keys;
  • 4 digital inputs;
  • 4 digital outputs;
  • 1xRS232; 1xRS485;
  • Protection: IP54;
  • Power: 230VAC / 50Hz (24VDC optional);
  • Operating Temperature: 0ºC +40ºC;
  • Precision Class III (OIML.

Load Cells

  • 1x load cells 30 kg;
  • IP65 protection;
  • CE Approval / OIML R60.

Options

Mouth/Small Bag Holder | Side table | feed hopper
